Android 面试题记录（二）

1. 管理基本线程的生命期

生命期 ：New -> Runnable -> Blocked/Waiting（Thread.sleep() | Thread.yield()） -> Terminated

Uncaught Exceptions

• Thread global handler：static void setDefaultUncaughtExceptionHandler(Thread.UncaughtExceptionHandler handler);
• Thread local handler：void setUncaughtExceptionHandler(Thread.UncaughtExceptionHandler handler);
• Unhandled Exceptions on the UI Thread，参见面试题记录（一）

Thread t = new Thread(new Runnable() {
    @Override public void run() {
        throw new RuntimeException("Unexpected error occurred");
    }
});
t.setUncaughtExceptionHandler(new Thread.UncaughtExceptionHandler() {
    @Override public void uncaughtException(Thread thread, Throwable throwable) {
        // A basic logging of the message. Could be replaced by log to file or a network post.
        Log.d(TAG, throwable.toString());
    }
});
t.start();

在 Activity 中保持线程

• public Object onRetainNonConfigurationInstance()：Called by the platform before a configuration change occurs, the implementation should return any object that you want to be retained across a configuration change (e.g., a thread) and passed to the new Activity object.
• public Object getLastNonConfigurationInstance()：Called by the platform before a configuration change occurs, it can be called in onCreate or onStart and returns null if the Activity is started for another reason than a configuration change.

public class ThreadRetainActivity extends Activity {
    private static class MyThread extends Thread {
        ...
    }
    private static MyThread t;
    private TextView textView;
    @Override public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_retain_thread);
        textView = (TextView) findViewById(R.id.text_retain);
        Object retainedObject = getLastNonConfigurationInstance();
        if (retainedObject != null) {
            t = (MyThread) retainedObject;
            t.attach(this);
        }
    }
    @Override public Object onRetainNonConfigurationInstance() {
        if (t != null && t.isAlive()) {
            return t;
        }
        return null;
    }
    public void onClickStartThread(View v) {
        t = new MyThread(this);
        t.start();
    }
    private void setText(final String text) {
        runOnUiThread(new Runnable() {
            @Override public void run() {
                textView.setText(text);
            }
        });
    }
}

在 Fragment 中保持线程

public class ThreadRetainWithFragmentActivity extends Activity {
    private ThreadFragment mThreadFragment;
    private TextView mTextView;
    public void onCreate(Bundle savedInstanceState) {
        setContentView(R.layout.activity_retain_thread);
        mTextView = (TextView) findViewById(R.id.text_retain);
        FragmentManager manager = getFragmentManager();
        mThreadFragment = (ThreadFragment) manager.findFragmentByTag("threadfragment");
        if (mThreadFragment == null) {
            FragmentTransaction transaction = manager.beginTransaction();
            mThreadFragment = new ThreadFragment();
            transaction.add(mThreadFragment, "threadfragment").commit();
        }
    }
    public void onStartThread(View v) { // Method called to start a worker thread
        mThreadFragment.execute();
    }
    public void setText(final String text) {
        runOnUiThread(new Runnable() {
            @Override public void run() {
                mTextView.setText(text);
            }
        });
    }
}
public class ThreadFragment extends Fragment {
    private ThreadRetainWithFragmentActivity mActivity;
    private MyThread t;
    private class MyThread extends Thread {
        @Override public void run() {
            final String text = getTextFromNetwork();
            mActivity.setText(text);
        }
        private String getTextFromNetwork() {
            SystemClock.sleep(5000); // Simulate network operation
            return "Text from network";
        }
    }
    @Override public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setRetainInstance(true); // Retain the platform handle on configuration changes.
    }
    @Override public void onAttach(Activity activity) {
        super.onAttach(activity);
        mActivity = (ThreadRetainWithFragmentActivity) activity;
    }
    @Override public void onDetach() {
        super.onDetach();
        mActivity = null;
    }
    public void execute() {
        t = new MyThread();
        t.start();
    }
}

2. 使用 HandlerThread（A High-Level Queueing Mechanism）

基础

• HandlerThread 该线程是一个包装了线程，Looper 和消息队列（MessageQueue）。

HandlerThread handlerThread = new HandlerThread("HandlerThread");
handlerThread.start();
mHandler = new Handler(handlerThread.getLooper()) {
    @Override public void handleMessage(Message msg) {
        super.handleMessage(msg);
        // Process messages here
    }
};

• 限制 HandlerThread 的可见性

public class MyHandlerThread extends HandlerThread {
    private Handler mHandler;
    public MyHandlerThread() {
        super("MyHandlerThread", Process.THREAD_PRIORITY_BACKGROUND);
    }
    @Override protected void onLooperPrepared() {
        super.onLooperPrepared();
        mHandler = new Handler(getLooper()) {
            @Override public void handleMessage(Message msg) {
                switch(msg.what) {
                    case 1: // Handle message
                        break;
                    case 2: // Handle message
                        break;
                }
            }
        };
    }
    public void publishedMethod1() {
        mHandler.sendEmptyMessage(1);
    }
    public void publishedMethod2() {
        mHandler.sendEmptyMessage(2);
    }
    private int mCount;
    private SharedPreferenceThread mThread;
    @Override protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_shared_preferences);
        mTextValue = (TextView) findViewById(R.id.text_value);
        mThread = new SharedPreferenceThread();
        mThread.start();
    }
    public void onButtonClickWrite(View v) {
        mThread.write(mCount++);
    }
    public void onButtonClickRead(View v) {
        mThread.read();
    }
    @Override protected void onDestroy() {
        super.onDestroy();
        mThread.quit(); // Ensure that the background thread is terminated with the Activity.
    }
}

串联任务

• 串联任务模式：由 Handler 定义的任务通过在 handleMessage() 中进行解耦和串联，该模式执行的关键在于 Message.what 参数，任何任务都可以独立地被访问；

public class ChainedNetworkActivity extends Activity {
    private static final int DIALOG_LOADING = 0;
    private static final int SHOW_LOADING = 1;
    private static final int DISMISS_LOADING = 2;
    Handler dialogHandler = new Handler() {
        @Override public void handleMessage(Message msg) {
            super.handleMessage(msg);
            switch (msg.what) {
                case SHOW_LOADING:
                    showDialog(DIALOG_LOADING);
                    break;
                case DISMISS_LOADING:
                    dismissDialog(DIALOG_LOADING);
                    break;
            }
        }
    };
    private class NetworkHandlerThread extends HandlerThread {
        private static final int STATE_A = 1;
        private static final int STATE_B = 2;
        private Handler mHandler;
        public NetworkHandlerThread() {
            super("NetworkHandlerThread", Process.THREAD_PRIORITY_BACKGROUND);
        }
        @Override protected void onLooperPrepared() {
            super.onLooperPrepared();
            mHandler = new Handler(getLooper()) {
                @Override public void handleMessage(Message msg) {
                    super.handleMessage(msg);
                    switch (msg.what) {
                        case STATE_A:
                            dialogHandler.sendEmptyMessage(SHOW_LOADING);
                            String result = networkOperation1();
                            if (result != null) {
                                sendMessage(obtainMessage(STATE_B, result));
                            } else {
                                dialogHandler.sendEmptyMessage(DISMISS_LOADING);
                            }
                            break;
                        case STATE_B:
                            networkOperation2((String) msg.obj);
                            dialogHandler.sendEmptyMessage(DISMISS_LOADING);
                            break;
                    }
                }
            };
            fetchDataFromNetwork();
        }
        private String networkOperation1() {
            SystemClock.sleep(2000);
            return "A string";
        }
        private void networkOperation2(String data) {
            SystemClock.sleep(2000); // Dummy
        }
        // Publically exposed network operation
        public void fetchDataFromNetwork() {
            mHandler.sendEmptyMessage(STATE_A);
        }
    }
    private NetworkHandlerThread mThread;
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        mThread = new NetworkHandlerThread();
        mThread.start();
    }
    @Override protected Dialog onCreateDialog(int id) {
        Dialog dialog = null;
        switch (id) {
            case DIALOG_LOADING:
            		AlertDialog.Builder builder = new AlertDialog.Builder(this);
            		builder.setMessage("Loading...");
            		dialog = builder.create();
            		break;
        }
        return dialog;
    }
    // Ensure that the background thread is terminated with the Activity.
    @Override protected void onDestroy() {
        super.onDestroy();
        mThread.quit();
    }
}

• 有选择地插入任务

handler.hasMessages(int what)
handler.hasMessages(int what, Object tag)
if (handler.hasMessages(MESSAGE_WHAT) == false) {
    handler.sendEmptyMessage(MESSAGE_WHAT);
}

3. 如何使用 Java Executor 框架

Executor

public interface Executor {
    void execute(Runnable command);
}
public class SimpleExecutor implements Executor {
    @Override public void execute(Runnable runnable) {
        new Thread(runnable).start();
    }
}

线程池

• 固定数量：Executors.newFixedThreadPool(n)，使用时，可重配置数量，((ThreadPoolExecutor)executor).setCorePoolSize(4);
• 动态大小：Executors.newCachedThreadPool()
• 单线程：Executors.newSingleThreadExecutor()

4. 如何自定义线程池

ThreadPoolExecutor 配置

ThreadPoolExecutor executor = new ThreadPoolExecutor(
    int corePoolSize,			// 该值设定的允许的线程数量，线程数量 < 该值
    int maximumPoolSize,	// 允许同时并发的数量
    long keepAliveTime,		// 允许线程存活以等待下一任务的时间
    TimeUnit unit,				// 配置存活时间的单位
    BlockingQueue<Runnable> workQueue);	// 任务队列

设计

• 线程数量 <- CPU 核心数量；另外需要记住的是：线程数量是依据线程创建和消亡而动态变化的！

int N = Runtime.getRuntime().availableProcessors();	// 获取 CPU 核心数量
// Brian Goetz 建议：N+1个线程的数量性能最好；
// Kirk Pepperdine 则推荐： 2*N 个线程性能也不错；

• Bounded or unbounded task queue：LinkedBlockingQueue（无数量限制）, PriorityBlockingQueue（有数量限制）, and ArrayBlockingQueue.
• 线程配置

class LowPriorityThreadFactory implements ThreadFactory {
    private static int count = 1;
    public Thread newThread(Runnable r) {
        Thread t = new Thread(r);
        t.setName("LowPrio " + count++);
        t.setPriority(4);
        t.setUncaughtExceptionHandler(new Thread.UncaughtExceptionHandler() {
            @Override public void uncaughtException(Thread t, Throwable e) {
                Log.d(TAG, "Thread = " + t.getName() + ", error = " + e.getMessage());
            }
        });
        return t;
    }
}
Executors.newFixedThreadPool(10, new LowPriorityThreadFactory());

• 扩展 ThreadPoolExecutor
• void beforeExecute(Thread t, Runnable r)：在执行线程之前执行；
• void afterExecute(Runnable r, Throwable t)：在线程执行结束后（不管有没有异常）执行；
• void terminated()：在没有线程执行任务的前提下，线程池关闭后执行；

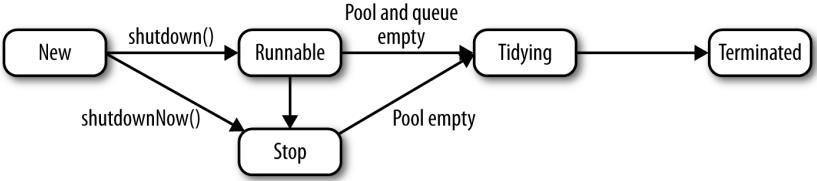

• 生命期
• Shutdown: 在调用 ExecutorService.shutdown() 后，线程池仍会继续执行未完的线程任务，但新的任务添加请求则会被拒接；
• Stop: 在调用 ExecutorService.shutdownNow() 后，正在执行的任务线程会被中止，未被执行的任务则被移除；
• Terminated: 在调用 ThreadPoolExecutor.terminated() 后的状态，所有数据结构将被释放；

使用例子和陷阱

• 一般情况下，线程池创建的线程即使终止后也不会被系统所回收，若要回收，可调用语句：executor.allowCoreThreadTimeOut(true);
• 处理预先加载的任务：一般情况下，线程池创建后等待任务，但可以使用如示方法在线程池创建后不必等待任务 prestartAllCoreThreads() or prestartCoreThread();
• 陷阱：创建零线程的线程池，当任务队列满了才会触发一个线程执行任务，如下所示，当第11个任务插入队列时才会触发执行一个线程：

int N = Runtime.getRuntime().availableProcessors();
ThreadPoolExecutor executor = new ThreadPoolExecutor(
                0,
                N*2,
                60L, TimeUnit.SECONDS,
                new ArrayBlockingQueue<Runnable>(10));

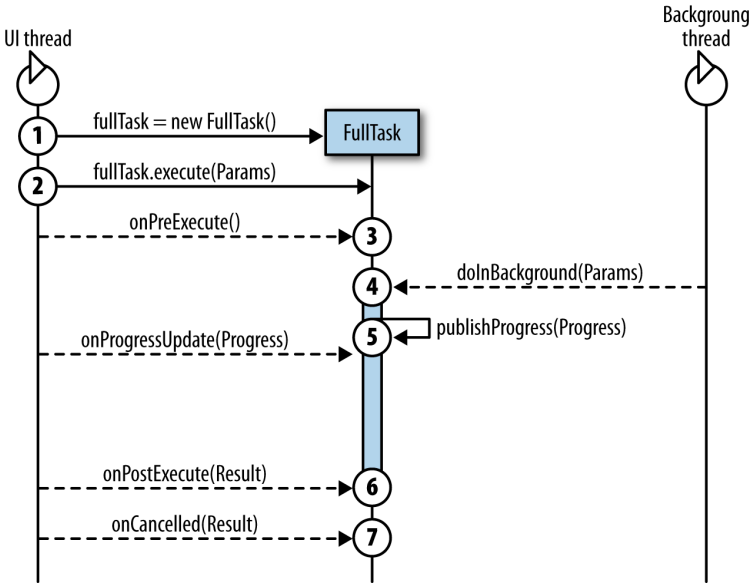

5. 如何使用AsyncTask

public class FullTask extends AsyncTask<Params, Progress, Result> {
    @Override
    protected void onPreExecute() { ... }
    @Override
    protected Result doInBackground(Params... params) { ... }
    @Override
    protected void onProgressUpdate(Progress... progress) { ... }
    @Override
    protected void onPostExecute(Result result) { ... }
    @Override
    protected void onCancelled(Result result) { ... }
}

// 示例：下载图片
public class FileDownloadActivity extends Activity {
    private static final String[] DOWNLOAD_URLS = {
        "http://developer.android.com/design/media/devices_displays_density@2x.png",
        "http://developer.android.com/design/media/iconography_launcher_example2.png",
        "http://developer.android.com/design/media/iconography_actionbar_focal.png",
        "http://developer.android.com/design/media/iconography_actionbar_colors.png"
    };
    DownloadTask mFileDownloaderTask;
    ProgressBar mProgressBar;
    LinearLayout mLayoutImages;
    @Override public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_file_download);
        mProgressBar = (ProgressBar) findViewById(R.id.progress_bar);
        mProgressBar.setMax(DOWNLOAD_URLS.length);
        mLayoutImages = (LinearLayout) findViewById(R.id.layout_images);
        mFileDownloaderTask = new DownloadTask(this);
        mFileDownloaderTask.execute(DOWNLOAD_URLS);
    }
    @Override protected void onDestroy() {
        super.onDestroy();
        mFileDownloaderTask.setActivity(null);
        mFileDownloaderTask.cancel(true);
    }
    private static class DownloadTask extends AsyncTask<String, Bitmap, Void> {
        private FileDownloadActivity mActivity;
        private int mCount = 0;
        public DownloadTask(FileDownloadActivity activity) {
             mActivity = activity;
        }
        public void setActivity(FileDownloadActivity activity) {
            mActivity = activity;
        }
        @Override protected void onPreExecute() {
            super.onPreExecute();
            mActivity.mProgressBar.setVisibility(View.VISIBLE);
            mActivity.mProgressBar.setProgress(0);
        }
        @Override protected Void doInBackground(String... urls) {
            for (String url : urls) {
                if (!isCancelled()) {
                    Bitmap bitmap = downloadFile(url);
                    publishProgress(bitmap);
                }
            }
            return null;
        }
        @Override protected void onProgressUpdate(Bitmap... bitmaps) {
            super.onProgressUpdate(bitmaps);
            if (mActivity != null)  {
                mActivity.mProgressBar.setProgress(++mCount);
                ImageView iv = new ImageView(mActivity);
                iv.setImageBitmap(bitmaps[0]);
                mActivity.mLayoutImages.addView(iv);
            }
        }
        @Override protected void onPostExecute(Void aVoid) {
            super.onPostExecute(aVoid);
            if (mActivity != null) {
                mActivity.mProgressBar.setVisibility(View.GONE);
            }
        }
        @Override protected void onCancelled() {
            super.onCancelled();
            if (mActivity != null) {
                mActivity.mProgressBar.setVisibility(View.GONE);
            }
        }
        private Bitmap downloadFile(String url) {
            Bitmap bitmap = null;
            try {
                bitmap = BitmapFactory.decodeStream((InputStream) new URL(url).getContent());
            } catch (MalformedURLException e) {
                e.printStackTrace();
            } catch (IOException e) {
                e.printStackTrace();
            }
            return bitmap;
        }
    }
}

API

• execute(Params…)
• execute(Runnable)：Added in API level 11, onPreExecute, onPostExecute, 和 onCancelled 方法将不会被调用，并且执行的进度也不会被更新（and progress can not be published）
• executeOnExecutor(Executor, Params…)：Added in API level 11
• AsyncTask.THREAD_POOL_EXECUTOR, 任务将并发执行, 在 KitKat(4.4)版本, 线程池的大小将基于 CPU 的核心数量：N+1 个核心线程以及最多2N+1 个线程，并且队列可拥有多达128个任务，所以在4核心的平台上，可拥有最多137个任务。
• AsyncTask.SERIAL_EXECUTOR，保证线程安全，该调度器将任务存储在一个没有限制数量的队列里，并将其一个个传递给 THREAD_POOL_EXECUTOR 线程池去执行。

在各个平台执行的不同区别

API 级别	execute	executeOnExecutor
1~3	线性序列	还未存在
4~7	-并发	还未存在
11~12	并发	线性序列/并发（自定义）
13+	线性序列	线性序列/并发（自定义）
