Stockeye 持续集成之路 —— NotificationStockQuote 开发实录

关键字 ：Jenkins、Gradle、Jacoco、Android Studio、JUnit 和 Robolectri（只适用Android API Level 16、 17、18）

预构

  • 故事点（Agile - Scrum）：用户可拉下通知框以查看实时股票信息
  • 界面草图（见下图）
  • 软件设计模式 ：观察者模式（Notification 为观察者，数据更新服务为目标，可能有多个不同类型观察者，考虑引进中介者模式以减轻服务管理依赖负担）
  • 类：NotificationStockQuote，接口 -> IObserverNotificationStockQuote，数据结构 -> 二维数组（界面布局采取Listview）

项目概览

项目 build.gradle

1
2
3
4
5
6
7
8
9
10
11
12
13
14
buildscript {
    repositories {
        jcenter()
    }
    dependencies {
        classpath 'com.android.tools.build:gradle:0.13.2'
        classpath 'org.robolectric:robolectric-gradle-plugin:0.13.+'
    }
}
allprojects {
    repositories {
        jcenter()
    }
}

app. build.gradle

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
apply plugin: 'com.android.application'
android {
    compileSdkVersion 18
    buildToolsVersion '19.1.0'
    defaultConfig {
        applicationId "com.msolo.stockeye"
        minSdkVersion 16
        targetSdkVersion 18
        versionCode 1
        versionName "1.0"
    }
    buildTypes {
        release {
            runProguard false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
    packagingOptions {
        exclude 'META-INF/NOTICE'
        exclude 'META-INF/LICENSE'
        exclude 'META-INF/LICENSE.txt'
        exclude 'LICENSE.txt'
    }
}
dependencies {
    compile fileTree(dir: 'libs', include: ['*.jar'])
    compile 'com.android.support:support-v4:19+'
    androidTestCompile 'org.hamcrest:hamcrest-integration:1.1'
    androidTestCompile 'org.hamcrest:hamcrest-core:1.1'
    androidTestCompile 'org.hamcrest:hamcrest-library:1.1'
    androidTestCompile('junit:junit:4.+') {
        exclude module: 'hamcrest-core'
    }
    androidTestCompile('org.robolectric:robolectric:2.3') {
        exclude module: 'classworlds'
        exclude module: 'commons-logging'
        exclude module: 'httpclient'
        exclude module: 'maven-artifact'
        exclude module: 'maven-artifact-manager'
        exclude module: 'maven-error-diagnostics'
        exclude module: 'maven-model'
        exclude module: 'maven-project'
        exclude module: 'maven-settings'
        exclude module: 'plexus-container-default'
        exclude module: 'plexus-interpolation'
        exclude module: 'plexus-utils'
        exclude module: 'support-v4'
        exclude module: 'wagon-file'
        exclude module: 'wagon-http-lightweight'
        exclude module: 'wagon-provider-api'
    }
}
apply plugin: 'robolectric'

目录结构

1
2
3
4
5
6
7
8
| build.gradle
| src
|   |- androidTest
|         |- java/com/msolo/stockeye/MainActivityTest.java
|         |- java/com/msolo/stockeye/StockeyeApplication.java
|   |- main
|         |- java/com/msolo/stockeye/MainActivity.java
|         |- java/com/msolo/stockeye/StockeyeApplication.java

TDD 示范程序

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package com.msolo.stockeye;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.robolectric.RobolectricTestRunner;
import static org.junit.Assert.assertEquals;
@RunWith(RobolectricTestRunner.class)
public class MainActivityTest {
    @Test
    public void testActivityDisplayHelloWorldSuccessful() {
        String hello = new MainActivity().getResources().getString(R.string.hello_world);
        assertEquals("Hello World!", hello);
    }
}

示范测试

E:\android_workspaces\TDDStockeye>d:gradle-2.1\bin\gradle test
:app:preBuild
:app:preDebugBuild
:app:checkDebugManifest
:app:prepareDebugDependencies
:app:compileDebugAidl UP-TO-DATE
:app:compileDebugRenderscript UP-TO-DATE
:app:generateDebugBuildConfig UP-TO-DATE
:app:generateDebugAssets UP-TO-DATE
:app:mergeDebugAssets UP-TO-DATE
:app:generateDebugResValues UP-TO-DATE
:app:generateDebugResources UP-TO-DATE
:app:mergeDebugResources UP-TO-DATE
:app:processDebugManifest UP-TO-DATE
:app:processDebugResources UP-TO-DATE
:app:generateDebugSources UP-TO-DATE
:app:compileDebugJava UP-TO-DATE
:app:compileTestDebugJava
:app:processTestDebugResources UP-TO-DATE
:app:testDebugClasses
:app:testDebug
:app:test

BUILD SUCCESSFUL

Total time: 11.647 secs

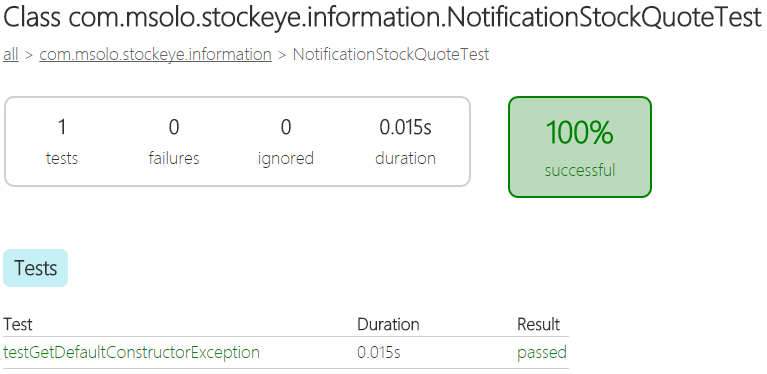

测试结果：file:///E:/android_workspaces/TDDStockeye/app/build/test-report/debug/index.html


NotificationStockQuote TDD

NotificationStockQuote 测试计划

  1. 单例类 (代号：Annn，实际中不必这么繁琐！)
  2. 初始化（代号：Bnnn，获取 NOTIFICATION_SERVICE，）
  3. To do…

第01次（A001）：测试默认构造器为私有，【注：TDD 快速测试示范意义】

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// NotificationStockQuoteTest.java
@Test
public void testSingletonOfNotificationStockQuote() {
    notificationStockQuote = new NotificationStockQuote();
    NotificationStockQuote notificationStockQuoteAnother = new NotificationStockQuote();
    assertNotSame(notificationStockQuoteAnother, notificationStockQuote);
}
// NotificationStockQuote.java
public class NotificationStockQuote {
    private static NotificationStockQuote sInstance = null;
    private NotificationStockQuote() {}
    public static NotificationStockQuote getInstance() {
        return new NotificationStockQuote();
    }
}
  • 结果预期：失败；NotificationStockQuote 类默认构造器可以在外部被调用。

第02次（A002）：测试默认构造器为私有，并且构造生成的对象为单例对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// NotificationStockQuoteTest.java
@Test
public void testSingletonOfNotificationStockQuote() {
    NotificationStockQuote notificationStockQuoteAnother = NotificationStockQuote.getInstance();
    notificationStockQuote = NotificationStockQuote.getInstance();
    assertSame(notificationStockQuoteAnother, notificationStockQuote);
}
// NotificationStockQuote.java
public class NotificationStockQuote {
    private static NotificationStockQuote sInstance = null;
    private NotificationStockQuote() {}
    public static NotificationStockQuote getInstance() {
        return new NotificationStockQuote();
    }
}
  • file:///E:/android_workspaces/TDDStockeye/app/build/test-report/debug/index.html
  • 结果预期：失败；NotificationStockQuote 类默认构造器私有，但返回的对象不是单例。

第03次（A003）：测试默认构造器为私有，并且构造生成的对象为单例对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// NotificationStockQuoteTest.java
@Before
public void setUp() {
    notificationStockQuote = NotificationStockQuote.getInstance();
}
@Test
public void testSingletonOfNotificationStockQuote() {
    NotificationStockQuote notificationStockQuoteAnother = NotificationStockQuote.getInstance();
    assertSame(notificationStockQuoteAnother, notificationStockQuote);
}
// NotificationStockQuote.java
public class NotificationStockQuote {
    private static NotificationStockQuote sInstance = null;
    private NotificationStockQuote() {}
    public static NotificationStockQuote getInstance() {
        if (null == sInstance) {
            sInstance = new NotificationStockQuote();
        }
        return sInstance;
    }
}
  • 结果预期：成功；NotificationStockQuote 类默认构造器私有，返回的对象是单例。

第04次（B001）：测试 NotificationStockQuote 完成对 Notification 服务管理对象的初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// NotificationStockQuoteTest.java
@Test
public void testInit() {
    NotificationManager notificationManager = (NotificationManager) Robolectric.application.getSystemService(Context.NOTIFICATION_SERVICE);
    notificationStockQuote.init();
    NotificationStockQuote.HelperTestNotificationStockQuote helper = notificationStockQuote.new HelperTestNotificationStockQuote();
    assertNotNull(helper.getNotificationManager());
    assertSame(notificationManager, helper.getNotificationManager());
}
// NotificationStockQuote.java
public void init() {
}
/**
 *
 * This is an inner class for helping test NotificationStockQuote,
 * and it should be delete in production.
 *
 * Date   | Name    | Change
 *--------+--------------------------------------------------
 * 141119 | mSolo   | REQ #001: add method getNotificationManager().
 *
 */
public class HelperTestNotificationStockQuote {
    public HelperTestNotificationStockQuote() {}
    public NotificationManager getNotificationManager() {
        return notificationManager;
    }
}
  • 结果预期：失败；NotificationStockQuote 对象并没有完成对 Notification 服务管理对象的初始化。


第05次（B002）：测试 NotificationStockQuote 完成对 Notification 对象的初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
@Test
public void testInit() {
    NotificationManager notificationManager = (NotificationManager) Robolectric.application.getSystemService(Context.NOTIFICATION_SERVICE);
    //notificationStockQuote.init();
    MimicNotificationStockQuote mimic = new MimicNotificationStockQuote();
    mimic.init();
    assertNotNull(mimic.notificationManager);
    assertSame(notificationManager, mimic.notificationManager);
}
/**
 *
 * This is an inner class for mimic NotificationStockQuote.
 *
 * Date   | Name    | Change
 *--------+--------------------------------------------------
 * 141119 | mSolo   | REQ #001: mimic method init().
 *
 */
private class MimicNotificationStockQuote {
    public NotificationManager notificationManager = null;
    public MimicNotificationStockQuote() {}
    public void init() {
        notificationManager = (NotificationManager)Robolectric.application.getApplicationContext().getSystemService(Context.NOTIFICATION_SERVICE);
    }
}
// NotificationStockQuote.java
public void init() {
    notificationManager = (NotificationManager) StockeyeApplication.getAppContext().getSystemService(Context.NOTIFICATION_SERVICE);
}
  • 结果预期：成功；NotificationStockQuote 对象完成对 Notification 服务的初始化。【注：不是很严格的测试】

未完待续
